Description

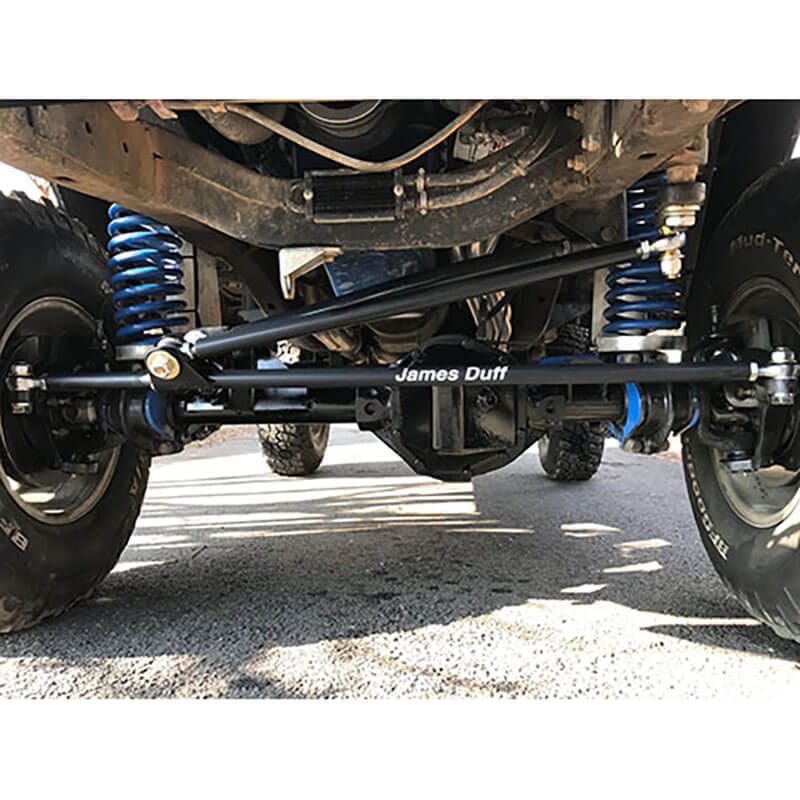

The Custom Length Heim Joint Steering System is meticulously crafted to deliver exceptional performance and reliability for off-road enthusiasts and street drivers alike. This system features 1.25-inch DOM tubing with a wall thickness of 0.2815 inches, ensuring maximum strength and longevity.
Key benefits of the system include:
– Threaded tube design eliminates the need for weld-in inserts, enhancing strength and ground clearance.
– Drag link mounts to the tie rod in the optimal location using a welded “saddle,” maintaining factory geometry and preventing bump steer.
– Advanced design significantly reduces torque and stress on the passenger side steering knuckle.
– High-strength, Teflon-lined, 3/4-inch rod ends paired with Grade 8 bolts facilitate full articulation without binding.
– Requires modification of existing stock knuckles to 3/4-inch unless paired with the available heim stud kit.
– Pitman arm features a specialized tapered heim stud, requiring no drilling for installation; compatible drop and OE replacement pitman arms available.
– Installable under or over the knuckle, suitable for DIY setups in garages or driveways.
– Optional accessories, including a bump steer eliminator and weld-on c-cap mount kit, enhance performance for specific applications.
– Complete hardware kit includes all necessary unitorque nuts and cotter pins for secure installation.
– Comes with a durable black powder coating and detailed installation instructions.
Please note: Custom Heim Steering Systems (5640C) are non-refundable and sold as-is. Most custom orders take 6 to 8 weeks for delivery. Accurate measurements must be provided after purchase.
Features & Benefits:
- Customizable length for precise fitment
- Increased strength and clearance
- Enhanced durability with Teflon-lined rod ends
- Maintains steering geometry to prevent bump steer
- Easy installation compatible with various configurations
- Complete installation hardware included
Technical Specs:
- Diameter: 1.25 inches
- Wall thickness: 0.2815 inches
- Rod ends: 3/4 inches, Teflon-lined
- Fits Early Bronco; modifications may be needed for Hellwig sway bar setups
