Description

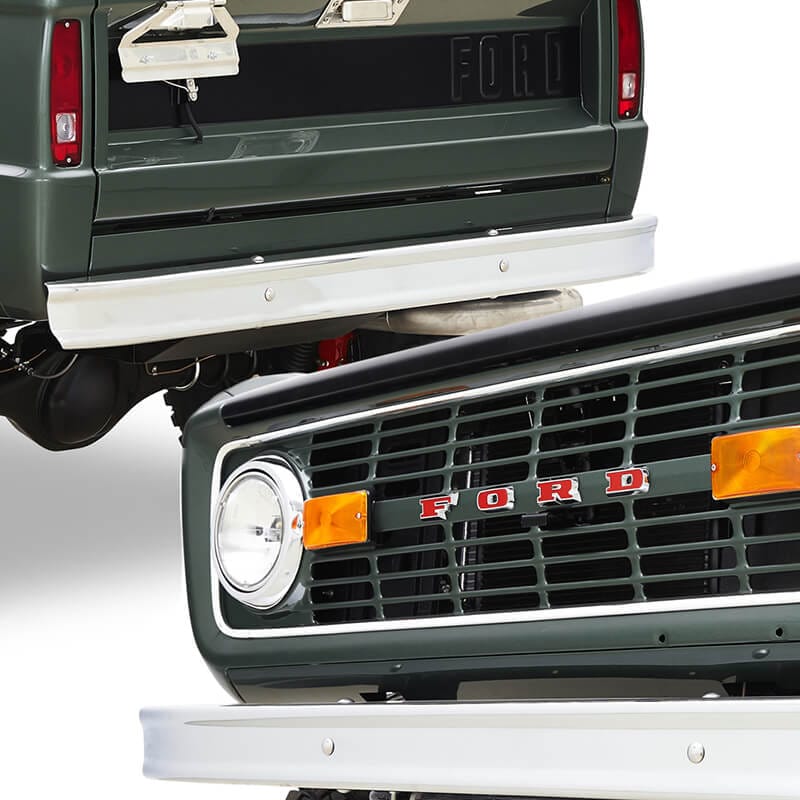

These filler panels are crafted from 18 gauge CNC laser-cut steel and are precision-bent for a seamless fit. Offered in configurations for 1, 2, and 3-inch body lifts, the panels come with pre-cut mounting holes and all necessary hardware for installation.
Key features include:

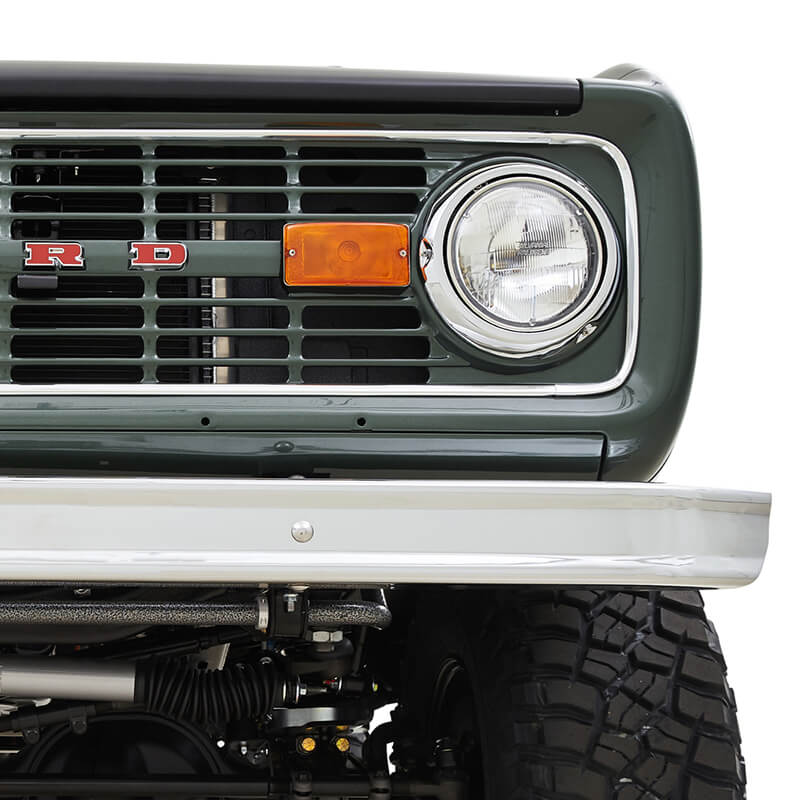

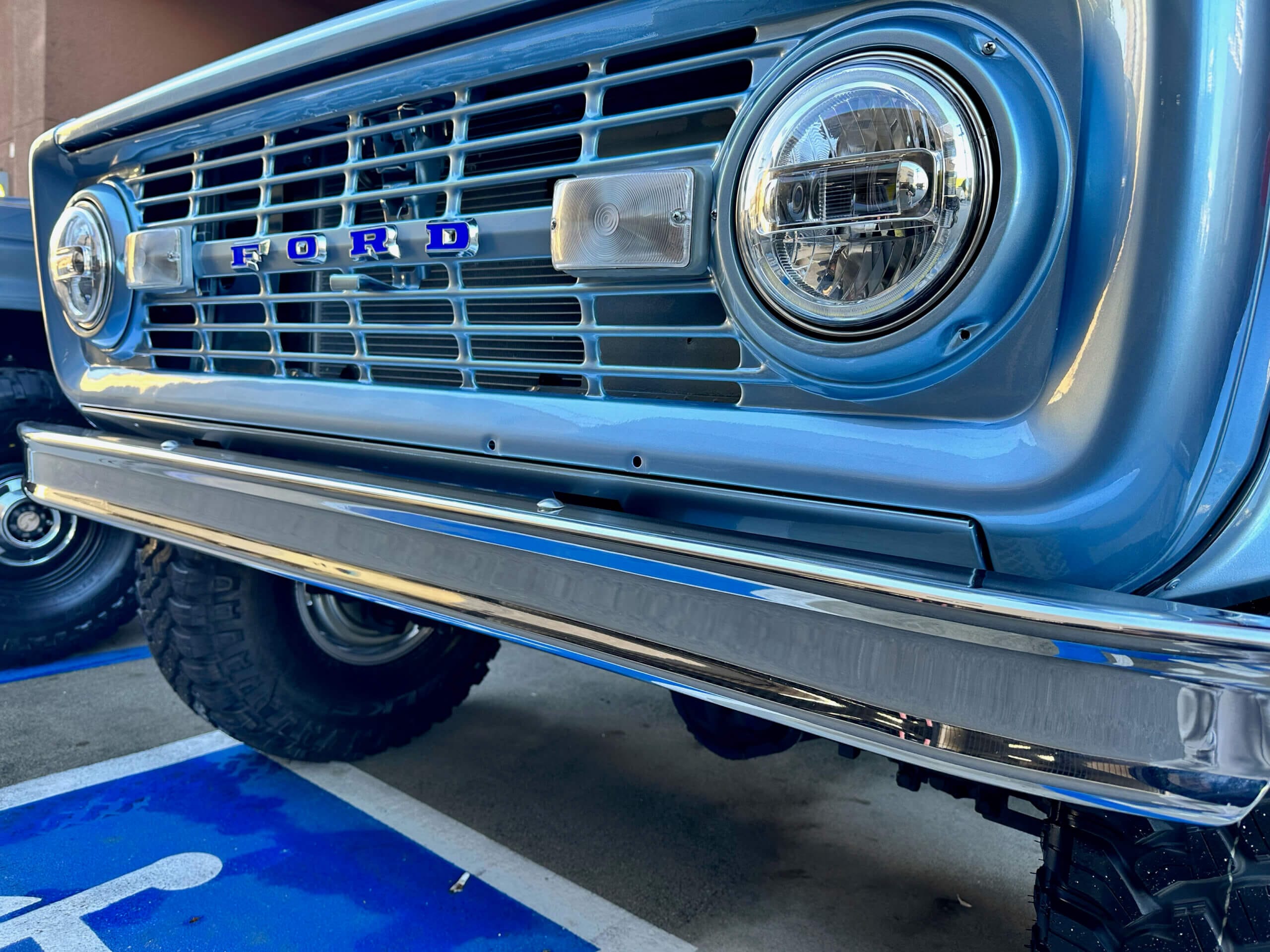

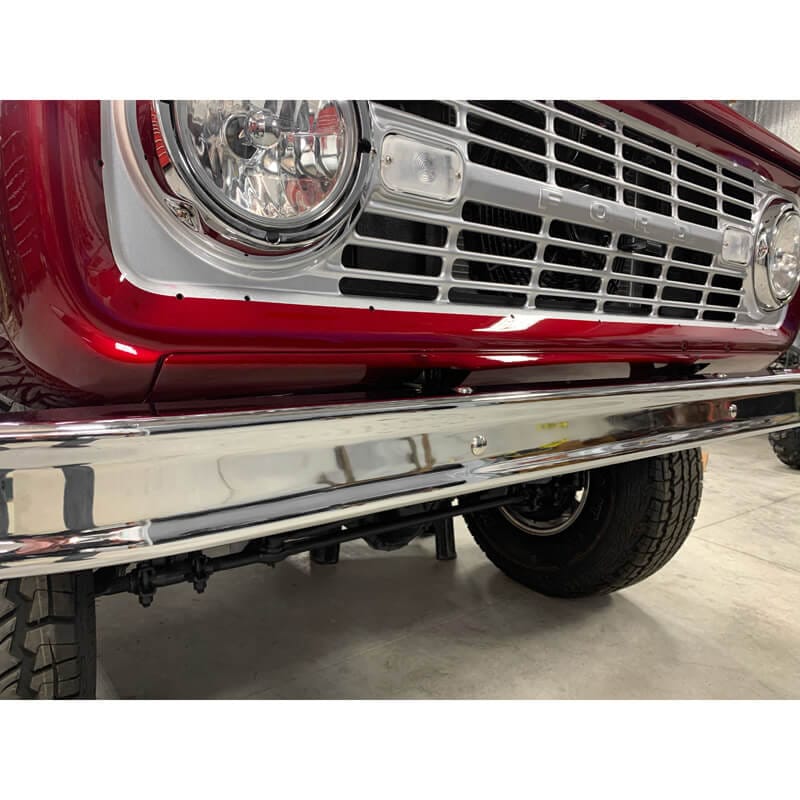

– Front panels available for 1-inch, 2-inch, and 3-inch body lifts

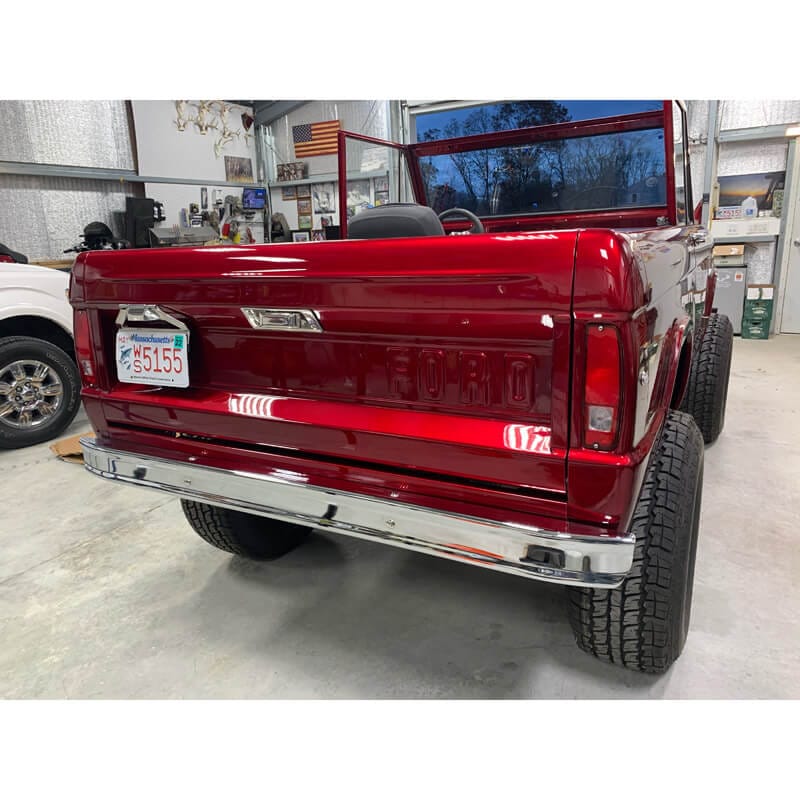

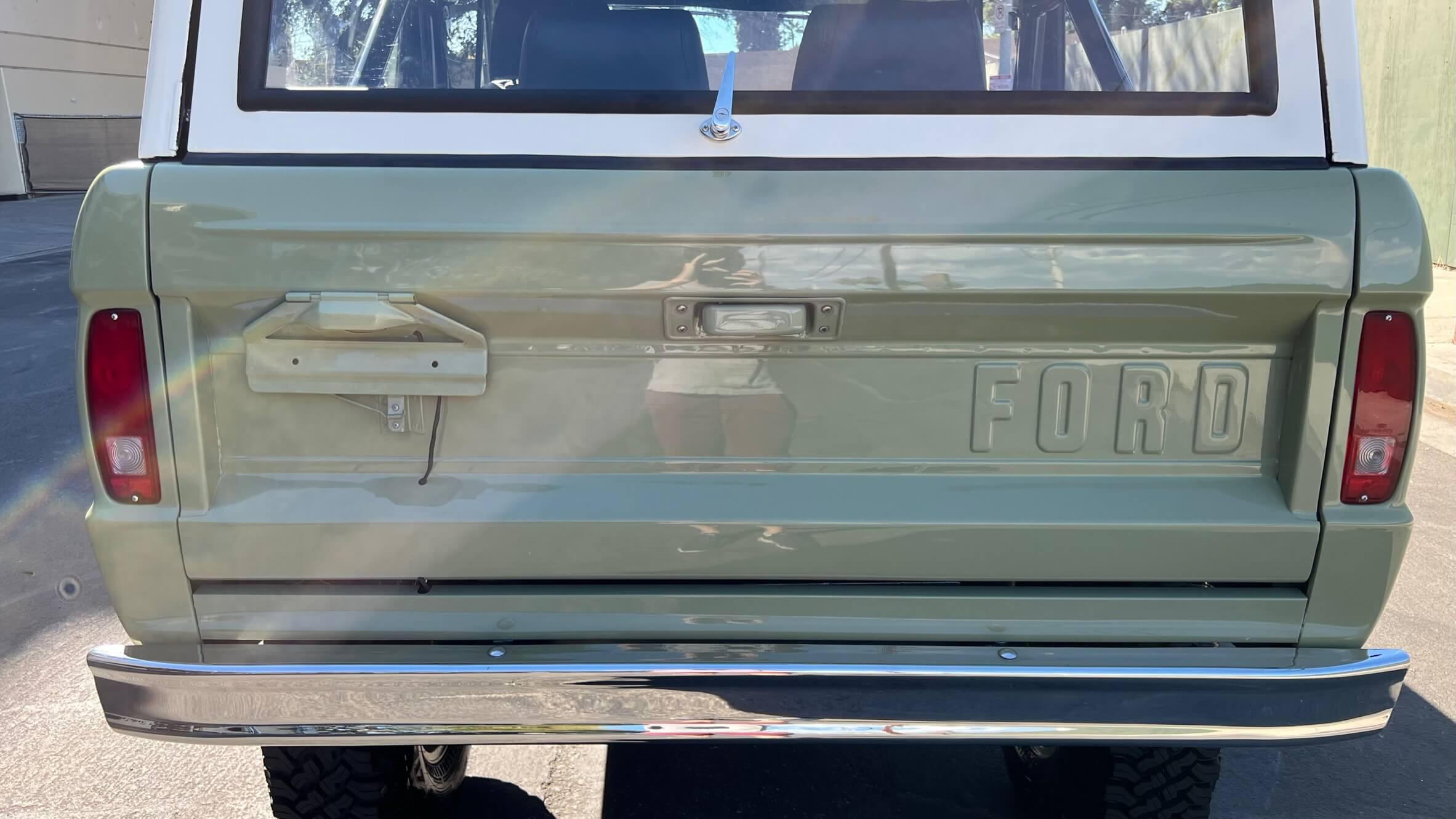

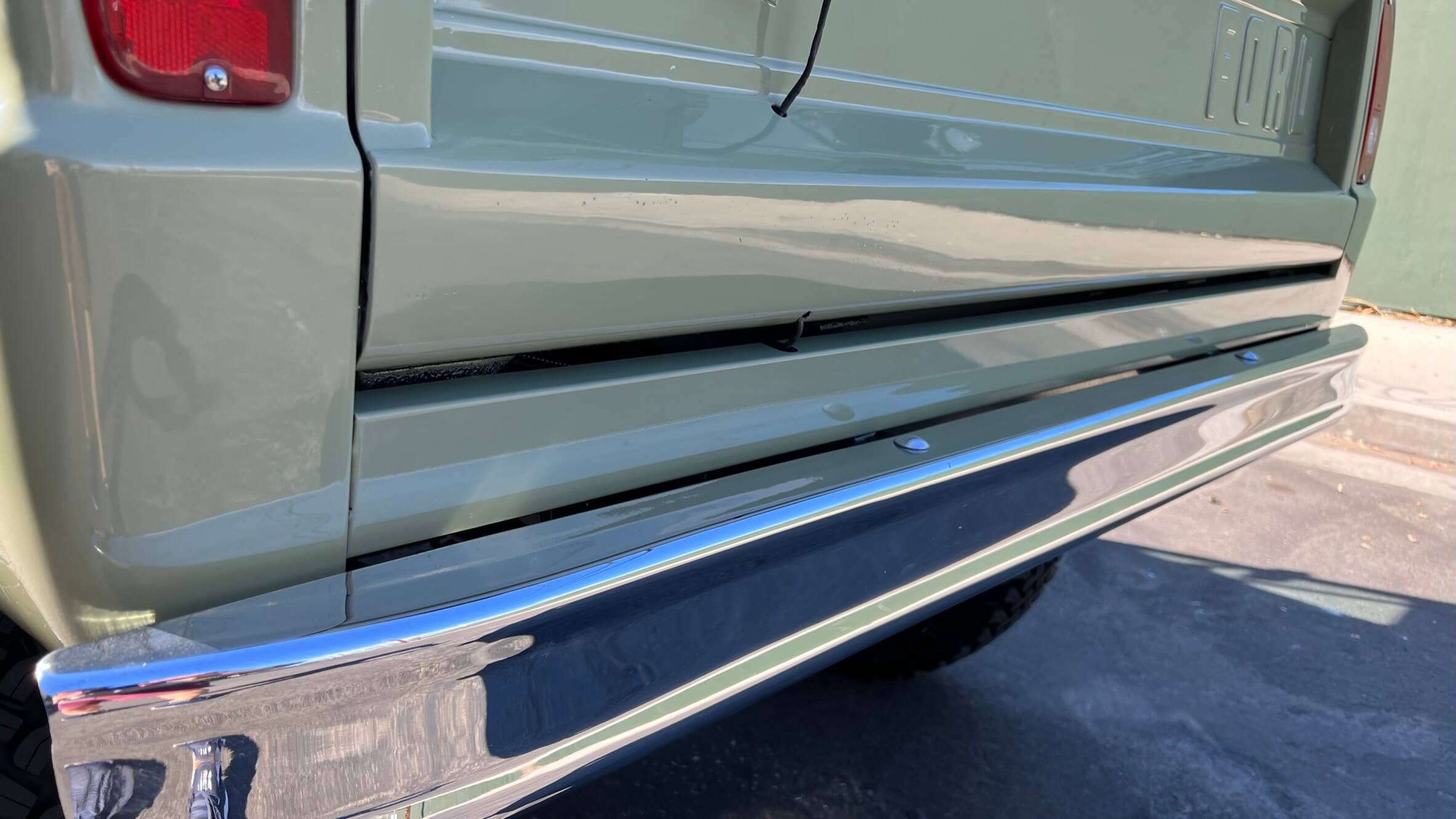

– Rear panels compatible with 1-inch, 2-inch, and 3-inch body lifts

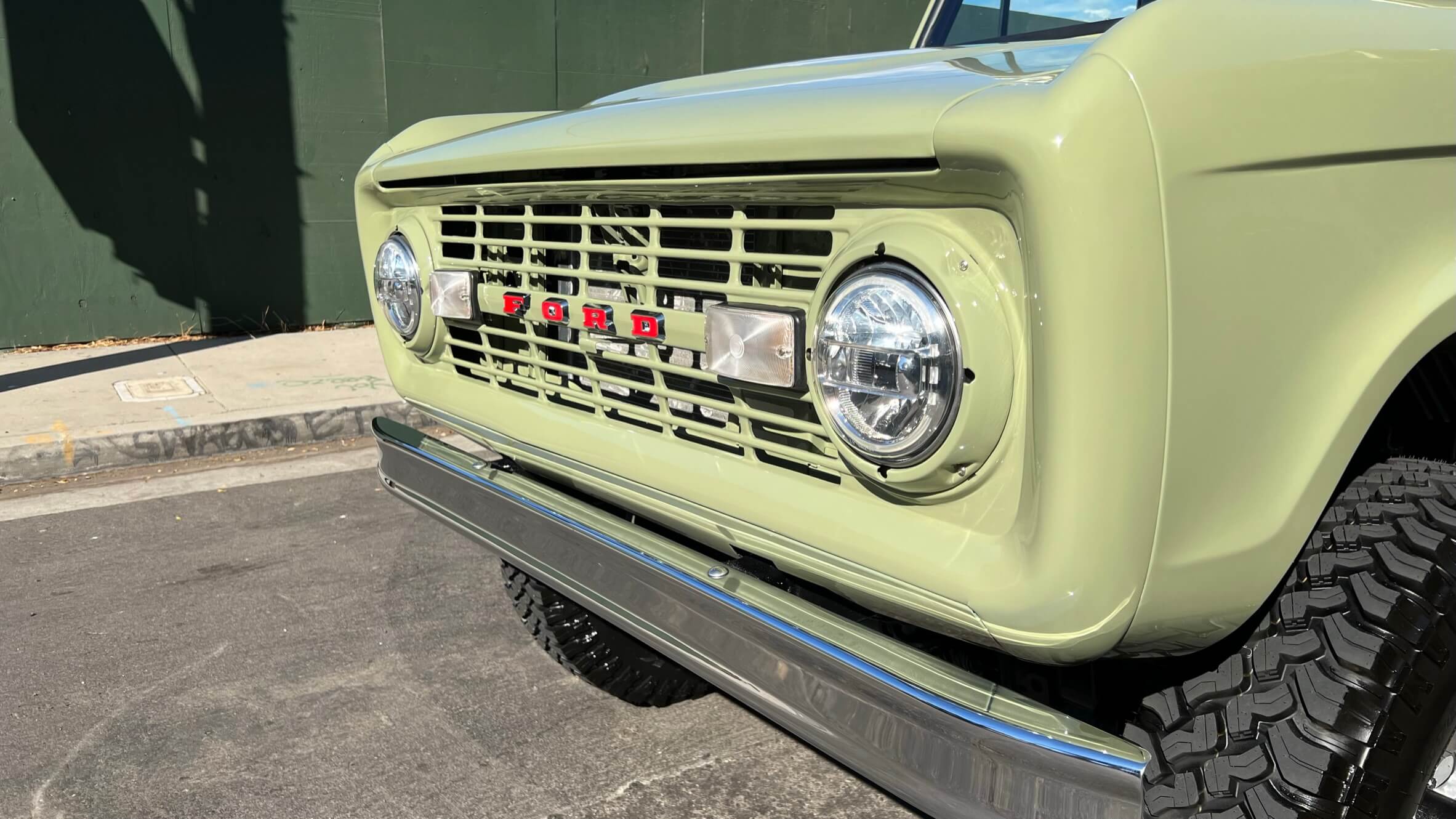

– Front panels require no cutting for 1-inch and 2-inch applications; 3-inch panels may need minor trimming

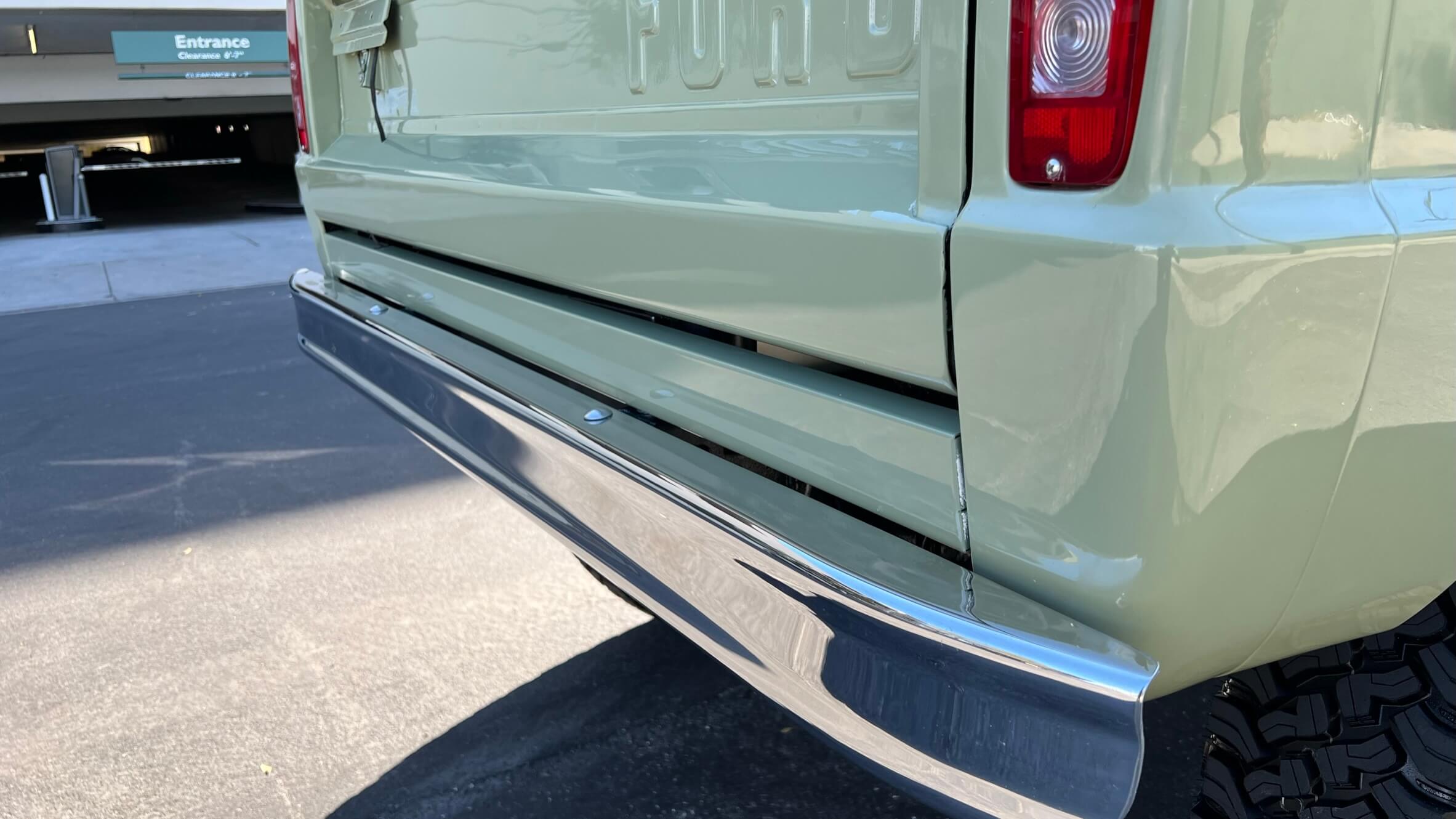

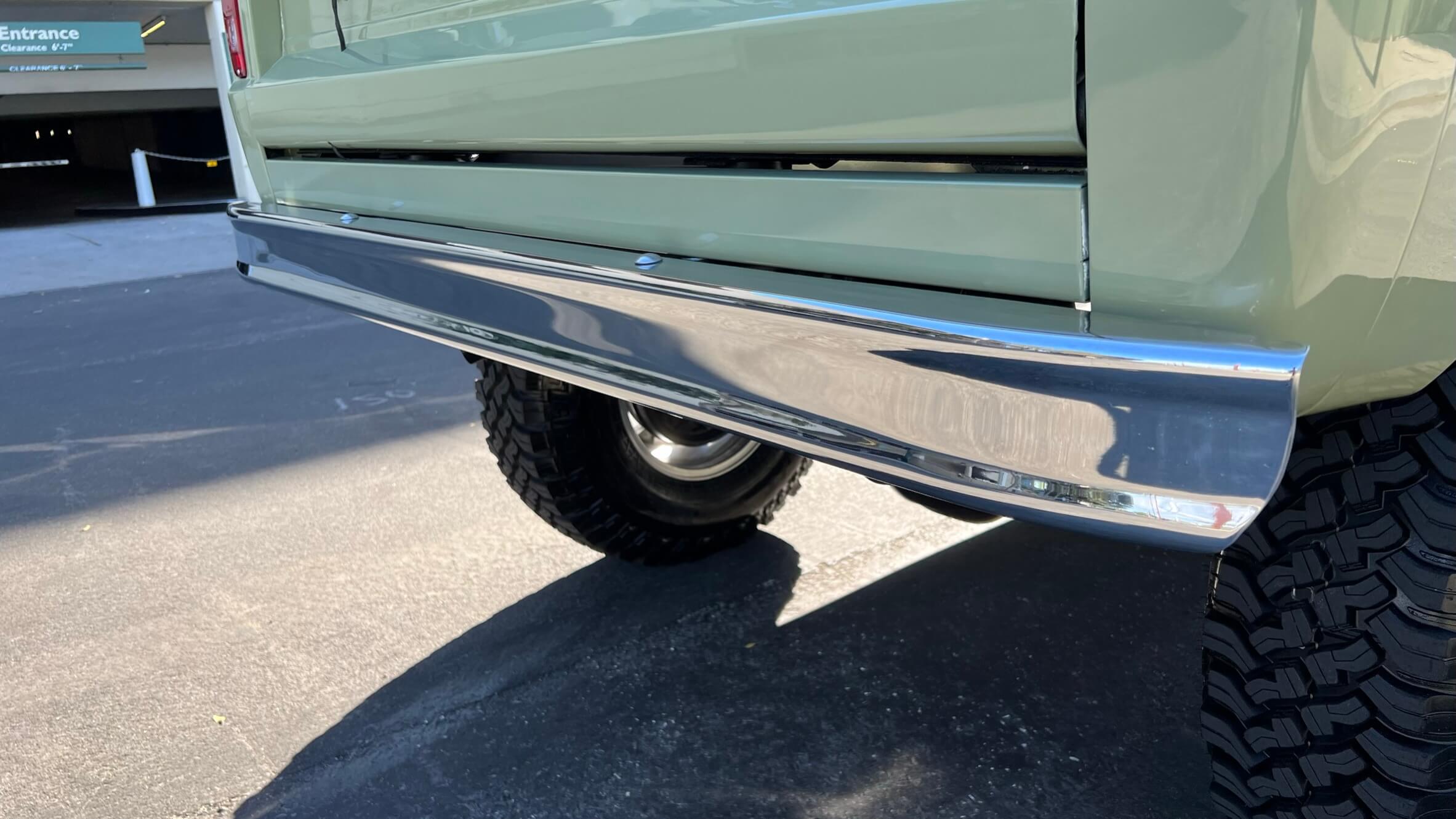

– Rear panel designed to work with the stock heavy-duty tire carrier bumper assembly (#4965)
– Mounting through factory bolt holes for the rear panel; front panel requires drilling into the grill
– Installation video available for visual guidance
Please note that minor bodywork may be necessary, as the panels ship bare and may exhibit small imperfections. Paint matching will be required for optimal aesthetics.
Check the minimum clearance requirements for rear panels based on your body lift to ensure a perfect fit.
Features & Benefits:
- 18 gauge thick construction for durability
- Clean edge design for a polished look
- All mounting hardware included

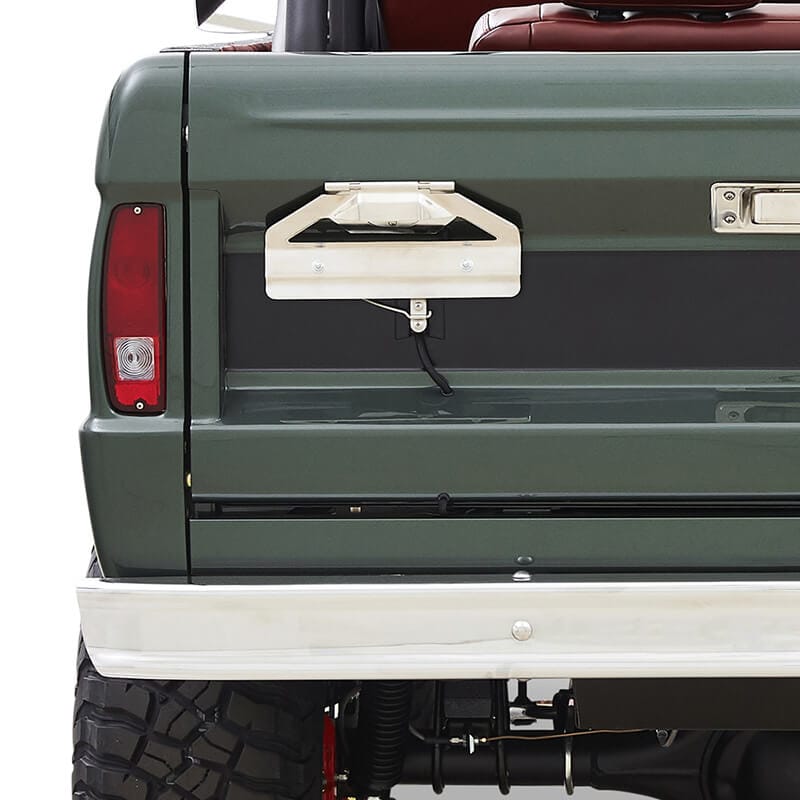

- Rear panel features a cut-out for license plate wiring
- Easy installation with provided video guidance
Technical Specs:
- Material: 18 gauge steel
- Compatibility:
- Front panel: 1″, 2″, 3″ body lifts
- Rear panel: 1″, 2″, 3″ body lifts
- Minimum clearance requirements for rear panels:
- 1” body lift: 1 7/8”
- 2” body lift: 2 7/8”
- 3” body lift: 3 7/8”
Tom Hyde –

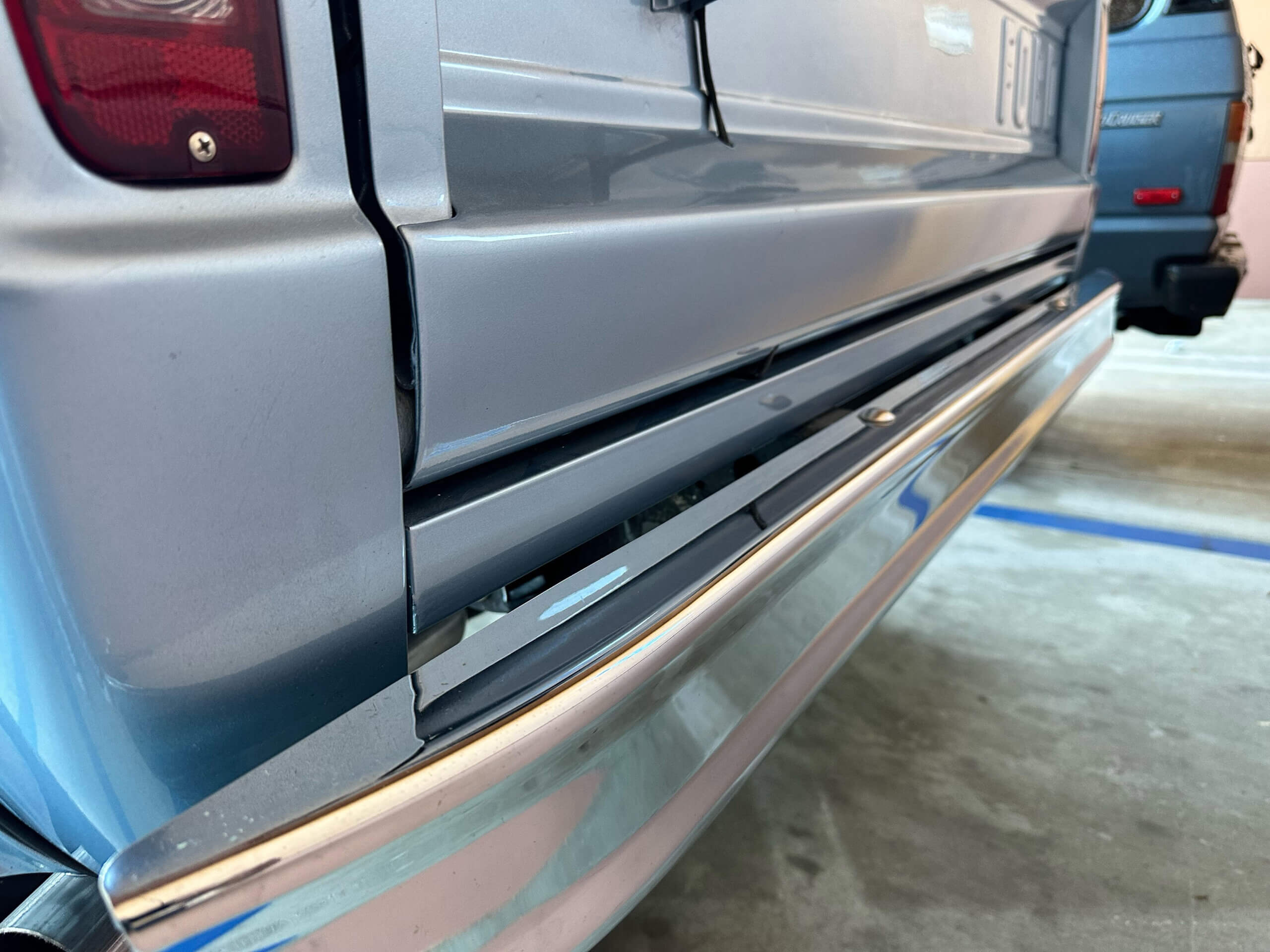

These are the same panels you have seen on the Duck but with a few more refinements. They are an easy and simple solution to get the clean lines we all admire. The rear panel installs with 2 bolts, the front can be bolted on (with some drilling to your existing grill shell) to add to your already painted truck or it can be welded in for an even cleaner look. We proudly use Duff Tuff parts on all of our builds because you can’t beat the quality and service.
Eric –
Really great way to close up the gaps above the bumper after adding a body lift. So much easier and cleaner that trying to fab up some thing on you own. Very good price for a well though out part.
Gerald Murrell –
I’ve been looking for a body piece to fill in the missing space above the bumper with a body lift. This is a perfect fit as well as easy to install.
Chris Hatcher –
Ordered and they were quickly delivered. Thanks for the timely response
Ryan Thomas (verified owner) –
Panels came quickly and fit great. It makes a nice clean look.
Steve Lill (verified owner) –
Quality product from the Duff team. Fits well and solves the unsightly gaps when using a body lift.
Chris Weddell (verified owner) –
This panel fits perfect and really looks good.
James Lee Tarter (verified owner) –
As always quality part from the Duffs. Fit was perfect and have had nothing but compliments on how they complete the look. Highly recommended.
Walker Everson (verified owner) –
The front and rear filler panels fit like a glove and enhanced the look on my Bronco. Would definitely buy again.
BaderInk (verified owner) –
Really adds to the fit and finish of a build. Nothing better than adding something to make it look better than when Ford built it.
Rick Arnold (verified owner) –
Installed on my current 1970 Bronco build. These fit great, easy to install and covered up the Gap from the 2″ body lift so it looks like OEM. I would definitely recommend these for any lifted Bronco.
Cbullzfan (verified owner) –
These are slick. The rear gap has always bothered me and added a 1 inch body lift just for these gap fillers. I have the duck tire carrier that utilizes the stock bumper and had to modify the right side mounting hole to be slotted to slide under the washer and 7/16 bolt that secures the carrier in place. 2 or 3 inch lift panel probably wouldn’t have to alot it. Plenty of room to turn an open end wrench inside the rear panel (from underneath) to tighten the bolt. The front was mounted with slide on 3/4 inch nut clips so I just turned the bolt from underneath to tighten. When done-Get the lawn chair and a beer cause the back looks really awesome….take it in! Lol
Cbullzfan (verified owner) –
These are slick. The rear gap has always bothered me and added a 1 inch body lift just for these gap fillers. I have the duck tire carrier that utilizes the stock bumper and had to modify the right side mounting hole to be slotted to slide under the washer and 7/16 bolt that secures the carrier in place. 2 or 3 inch lift panel probably wouldn’t have to do that. Plenty of room to turn an open end wrench inside the rear panel (from underneath) to tighten the bolt. The front was mounted with slide on 3/4 inch nut clips so I just turned the bolt from underneath to tighten. When done-Get the lawn chair and a beer cause the back looks really awesome….take it in! Lol
John Weatherbie (verified owner) –
Great Product, and easy to install. These closed the gaps nicely on my Bronco after installing a 3” Bodylift. Way better than the diamond plates that were jammed in there by the previous owner. For the price, these are way nicer than trying to fab your own.
TM (verified owner) –
Well made, with fit and finish only needing slight bodywork. I’ve already recommended these to a fellow Bronco owner, who commented that they looked factory.
