The Extended Long Travel Radius Arms by James Duff Inc. are crafted for those seeking superior off-road performance and enhanced vehicle control. Originally developed for the ’78-’79 Big Bronco, this specialized kit adapts seamlessly for Ranger-based vehicles, paving the way for a successful solid axle swap. Constructed from 2″ diameter heavy-wall DOM steel that is 5/16″ thick, these arms ensure maximum strength and safety.
With an impressive length of 10 3/4″ longer than stock ’66-’79 Bronco radius arms, the pivot point is moved backward, which significantly boosts suspension travel and articulation. This design doesn’t just excel off-road; it also optimizes handling and responsiveness during highway driving.

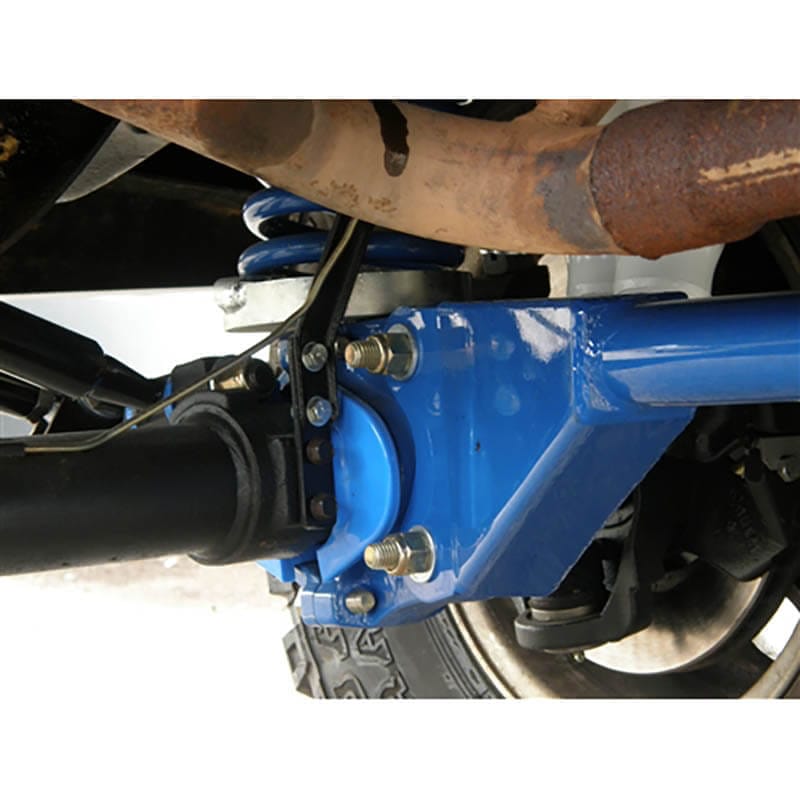

The kit includes heavy-duty components such as separate cast steel head units that mount directly to the C-wedges on your axle, maintaining compatibility with the original C-caps or the optional new versions. Features to note:
– Fabricated from brand new materials

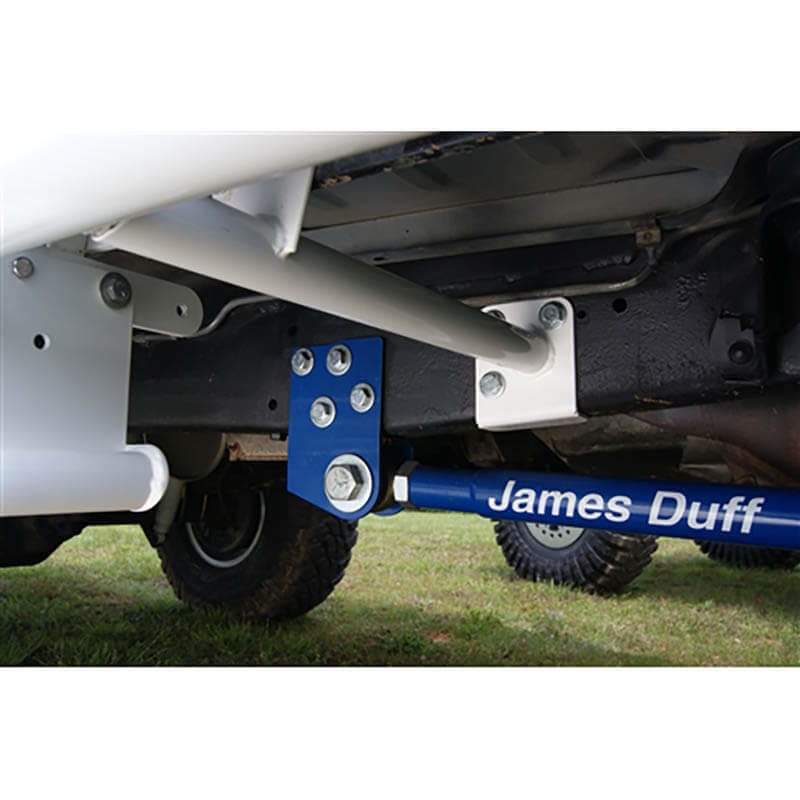

– Streamlined installation with bolt-in C-channel frame mounts
– Built-in caster enhances alignment and driving dynamics
– High-quality rod ends keep the arms securely close to the frame for improved ground clearance
Designed to work best with a minimum 6″ suspension lift for Full-Size Broncos, this kit optimally integrates with various aftermarket components such as Cast C-Wedges, C-Caps, and spacers to facilitate the installation of a Dana 44 or Dana 60 axle.

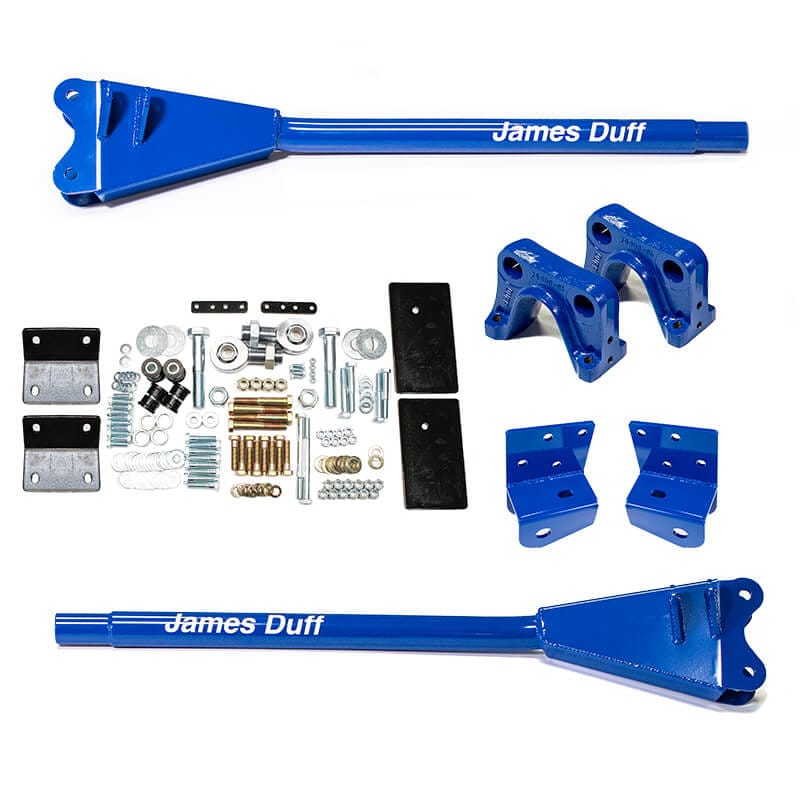

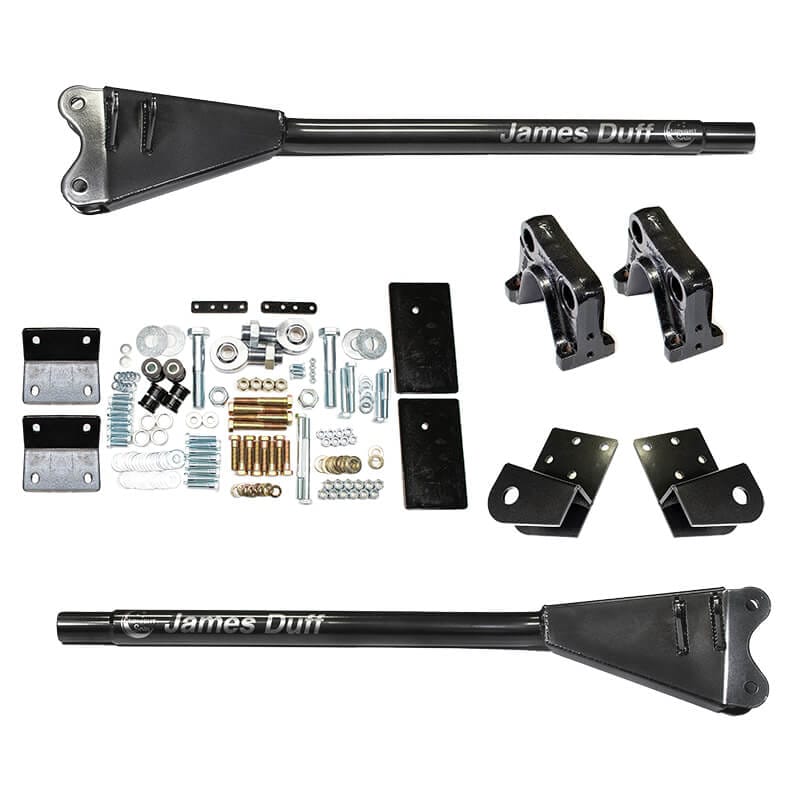

Included in the kit:
– 1 Driver and 1 Passenger Side Radius Arm
– 2 Headunits
– 1 Driver and 1 Passenger Side Frame Bracket
– Hardware Kit
– Anti-seize
– Instruction Sheet
For vehicles with specific lifting requirements, C-bushings must be purchased separately to ensure proper alignment and performance. The extended arms featured in this kit are recognized for their durability and proven reliability in the off-road community.
Features & Benefits:
- Features:
- Proven design since 2001
- Bolt-in C-Channel Frame Mounts
- 10 3/4″ longer than stock
- Built-in 4.25 degrees of added caster
- Outstanding customer support
- Designed for larger tire accommodations
- Maximizes articulation and flex
- Strongest extended radius arms available
- Made from 100% new American materials
- Powder-coated finish with all necessary mounting hardware
- Eliminate outdated designs and core charges
Technical Specs:
- Specifications:
- Material: 2″ diameter heavy-wall DOM steel
- Thickness: 5/16″
- Length: 10 3/4″ longer than stock radius arms
- Compatibility:
- Ford Ranger (1983-1997) with solid axle swap
- Bronco II (1984-1990) with solid axle swap
- Explorer (1991-1994) with solid axle swap
