Description

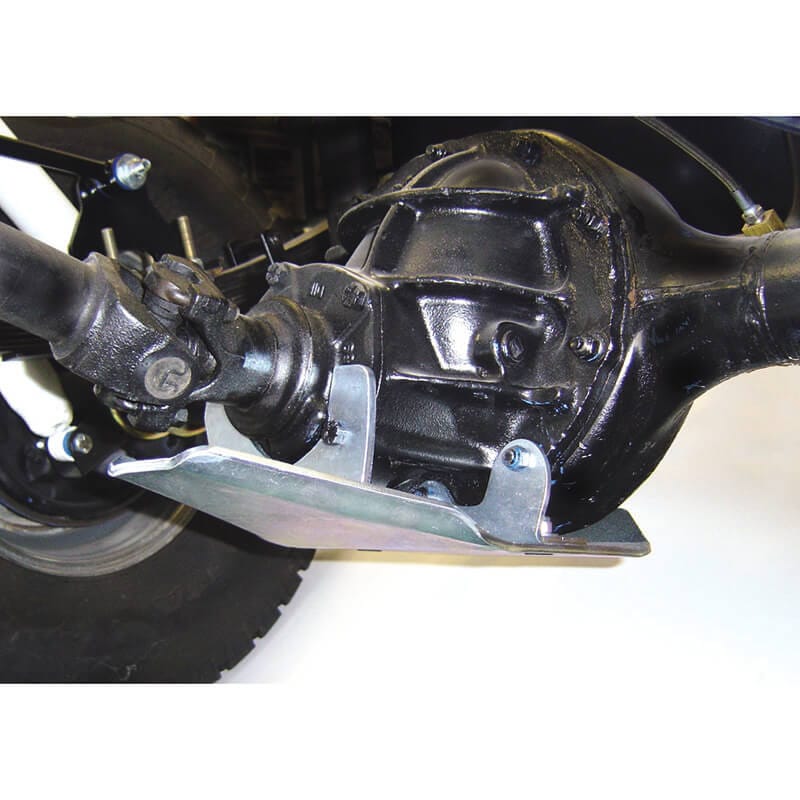

The 9″ Skid Plate is engineered specifically for 1966-79 Ford Broncos, ensuring optimal fit and performance in even the most demanding terrains. Constructed from 1/4″ thick plate steel, it not only protects your differential and pinion from rocks and obstacles but also enhances ground clearance for superior off-road capability.
Installation is simplified with a two-piece design: the mounting bracket securely affixes to the housing studs, while the skid plate itself is anchored using pinion carrier bolts and countersunk bolts for a sleek, smooth sliding surface. The straightforward bolt-on installation process eliminates the need for welding or removal of the center section, making it accessible for any enthusiast.
This skid plate is also compatible with the following models:
– 1976-79 F-150 4X4
– 1978-79 Big Bronco
– All Full-Size Broncos equipped with a factory 9″ differential (up to 1986 in some cases)
Additionally, it can fit any Ford 9″ axle used in custom applications.
For a limited time, save $20 when you purchase the Dana 44 guard alongside this skid plate. The discount will automatically apply at checkout.
Please note that some models or production years may require minor trimming or adjustments at mounting points due to variations in casting and OEM truss structures. This could also apply to the last six months of Early Bronco production.
To view detailed installation instructions, please download the provided document.
Features & Benefits:
- Made from 1/4″ thick plate steel
- Maximum ground clearance
- Two-piece design for easy installation
- Bolt-on installation; no welding required
- Silver zinc plating for rust resistance
- Includes all necessary hardware
Technical Specs:
- Fits: 1966-79 Ford Bronco, 1976-79 F-150 4X4, 1978-79 Big Bronco, All Full-Size Broncos with a factory 9″ differential
- Compatibility with Ford 9″ axle for custom applications
- Mounting: Bracket attaches to housing studs, skid plate uses countersunk bolts
- Finish: Silver zinc plated
Resources:
Chase Lillich –
I did have to drill out a few of the holes which I understand. Overall very heavy duty. Would have cost me more counting my time to fabricate a similar one
Michael Beatty –
Looks pretty cool…kinda worried about it rusting, so having it powder coated…
David Jefferson –
Just got them today, they look pretty sturdy, can’t wait to try them out
Michael French –
I have been buying parts from you guys since the late 70’s early 80’s and as always have recieved nothing but excellent service and parts from you. A big thank you to James, Suzy and Mike for continuing to supply Great parts to the Bronco community!
Thanks again
Mike French
Bronco Heaven
Goshen Indiana
PS Kudos also to Brian Be Bo for his help on phone orders! Always a pleasure to talk to him.
Frenchy
PSS See you at Silver Lake!!!
Mark (verified owner) –
Solid. It is the best skid plate I found and it will protect your diff without question.
Eddy Einem –
Protection were needed! No one wants to break a drive shaft and this protects the connection to the diff and also provides protection to the diff. Easy bolt on install and being a 1/4” has taken a beating and hasn’t bent.
Ryan Hubbard –
Very slim line while being very heavy duty. Doesn’t really affect the ground clearance being so tight to the differential.
Will take all the abuse I can dish out to it and then some.
doogieglh (verified owner) –
The design is well thought out. As with all of their products, quality is great!
charlie.westmoreland (verified owner) –
Very stout and well built, aligns and fits perfectly. Primer & Paint give it a nice finishing touch. Will provide extra protection to the rear diff.
