Description

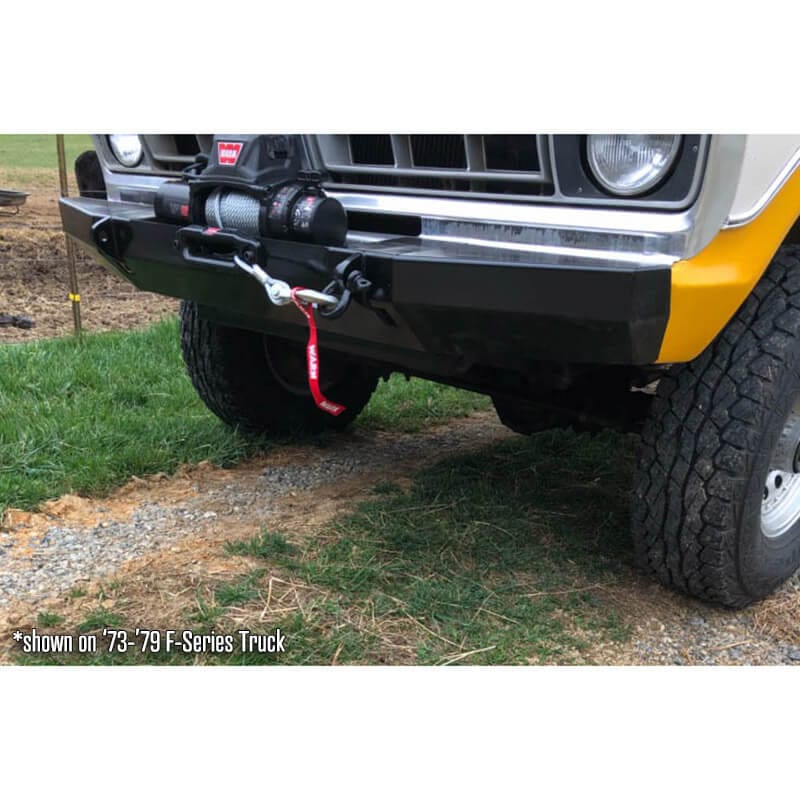

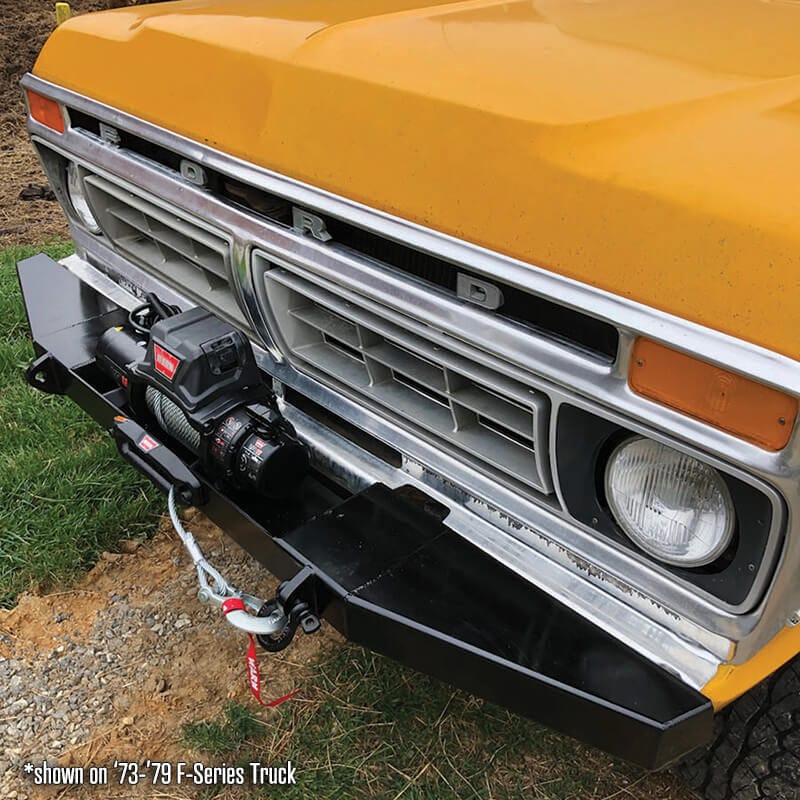

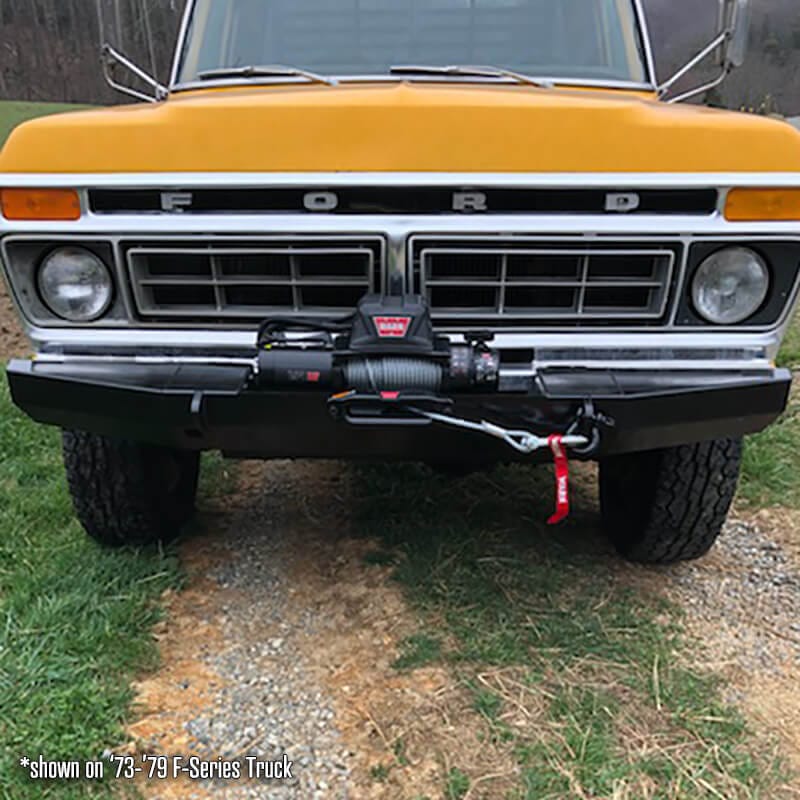

The ’73-’79 Ford F-Series Front Plate Winch Bumper combines advanced design and solid construction to enhance both functionality and aesthetics. This innovative bumper is tailored to fit seamlessly on your truck, offering an impressive combination of high strength and lighter weight due to the use of premium-grade steel. Equipped to accommodate up to a 12,000-pound winch, the bumper is designed for maximum approach angle while keeping the winch mount as low as possible to maintain optimal airflow to the radiator.
Distinctive features include:
– Laser-cut openings for jacking points and attachments for shackles or tow bars
– Available as an option with a center hoop and kicker bars
– Center hoop features light tabs, spaced for either round lights or a 13” light bar
Please note, it is essential to communicate your shipping preferences upon purchasing, as some bumpers may take 4-6 weeks to ship rather than the typical 2 weeks. The bumper arrives bare and unboxed, necessitating that you paint or powder coat only after all components have been test-fitted to your vehicle.
Installation requirements include drilling three 1/2″ holes into the frame. This bumper is not compatible with Warn 8274 style winches. For F350 4×4 models, modifications to the provided bolt-on bumper brackets will be necessary to accommodate the leaf spring front hanger.
High-quality craftsmanship, perfect fit, and innovative design are guaranteed—all tested and developed domestically in the USA.
Features & Benefits:
- Made from high-quality 3/16″ and 1/4″ plate steel
- Supports winches up to 12,000 pounds
- Maximizes approach angle with low winch mount height
- Laser-cut openings for jacking and towing
- Optional center hoop with light tabs for added utility
- Customizable with kicker bars
- Tested and crafted in the USA
Technical Specs:
- Application: ’73-’79 Ford F-Series Trucks
- Material: 3/16″ and 1/4″ plate steel
- Winch Capacity: Up to 12,000 pounds
- Installation: Requires 3 – 1/2″ holes drilled into the frame
- Compatibility: Not compatible with Warn 8274 style winches
- Additional Notes: F350 4×4 modifications needed for bolt-on brackets
