Description

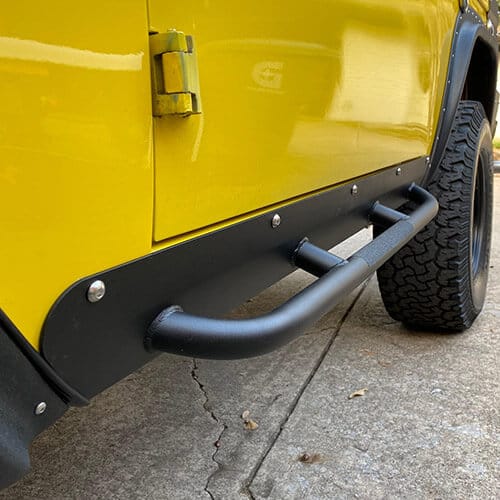

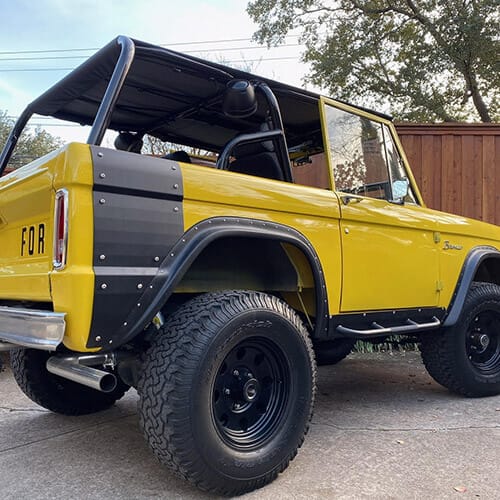

The 1/4″ Rocker Guards with Slider feature a durable construction that includes:
– A 1/4″ outer plate
– A 3/16″ rear backing plate
These rocker guards measure 48 inches in length, covering your vehicle from flare to flare with the option for trimming to accommodate different wheel well openings. They not only safeguard your Bronco’s sheet metal but also effectively conceal existing damage.
Additionally, each unit includes a wall tubing protector that measures:
– Dimensions: 39″ x 1 1/2″ x 3/16″
This feature is specifically designed to guard against rocks and tree branches, protecting both your doors and flares.
For installation, the guards utilize:
– 3/8″ Stainless Steel Button cap bolts
– Nutserts
These components ensure a rust-free appearance that complements your vehicle’s aesthetics. The guards arrive in a bare finish, making them easily paintable to match your Bronco.
While these rocker guards excel in protection, they can also double as steps. If choosing this option, we recommend applying non-skid tape, a practice successfully demonstrated by longtime users like Suzy from Hi Ho Silver, who has trusted these guards on her Bronco for nearly a decade.
Please note that these items are shipped in two separate boxes.
Features & Benefits:
- Key Features:
- Two-piece design for maximum rocker panel protection
- 48-inch length, easily trim to fit various wheel well openings
- 39″ x 1 1/2″ x 3/16″ wall tubing protector for added safety
- Rust-free stainless steel mounting hardware
- Bare finish, easily customizable
- Recommended for use as steps with added non-skid tape
Technical Specs:
- Specifications:
- Outer Plate: 1/4″
- Rear Backing Plate: 3/16″
- Tubing Protector Dimensions: 39″ x 1 1/2″ x 3/16″
- Mounting Bolts: 3/8″ Stainless Steel Button cap bolts
- Shipping: Two boxes
Resources:
James Henz –
I feel better going off road in my restored and modified 1969 Bronco with the added protection provided with the 1/4 inch thick rock sliders and my very supportive wife appreciates the integral step! Top notch quality and fitment. I threw away the old ones made by the competition.
Mark M. –
Ordered and received the Rock Guards in record time. Super high quality and love the way they look on my ’70 Bronco!. Took about 90 mins to install with no help.
Ronald Ghiardi –
After cutting to fit between my rear flares they fit great and lined up under the doors good. I had to make the pre drilled holes on the back side slotted to line up with the holes in the lip under the rockers ( mine were only about 1/2″ ) after doing that everything lined up great
travis tarpley –
